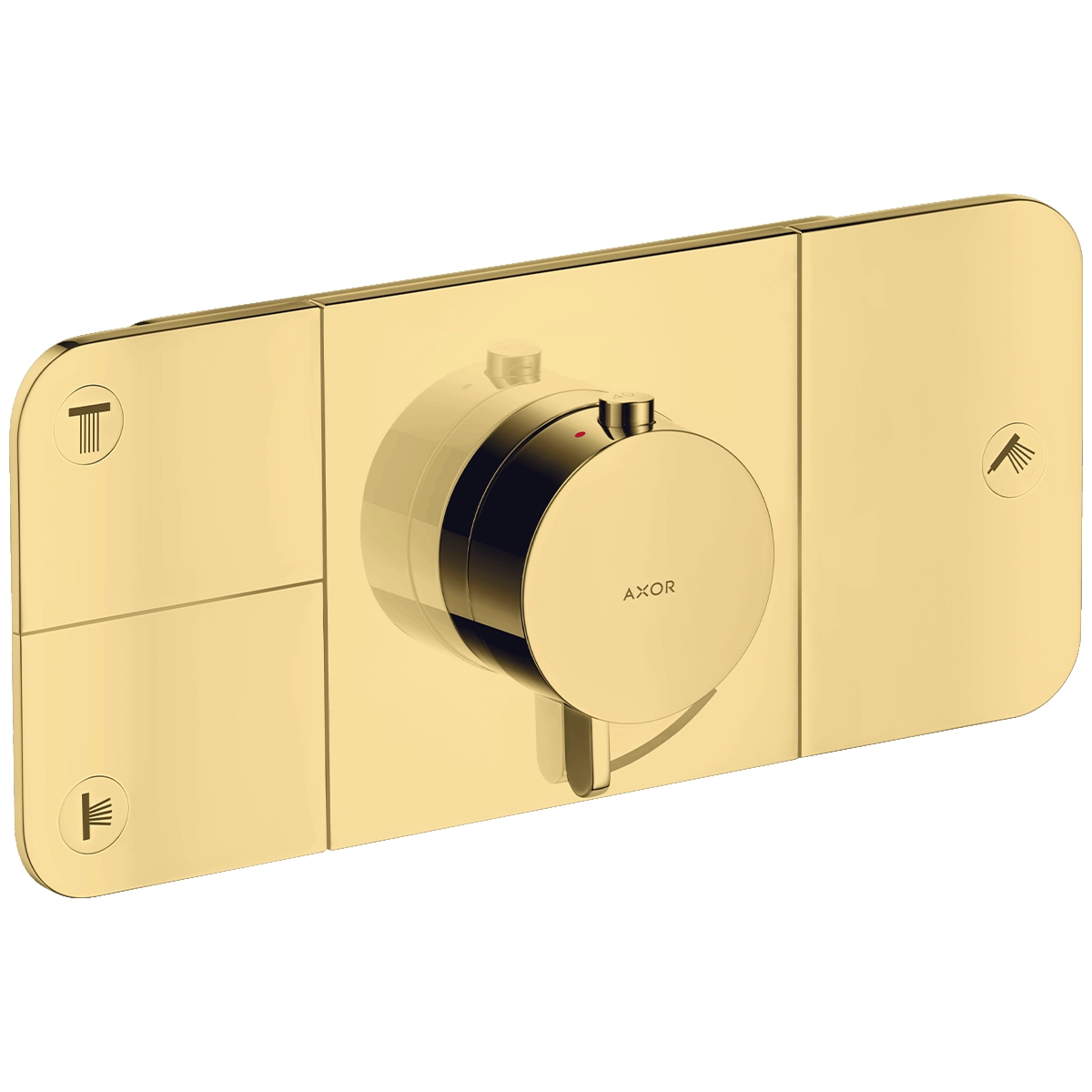

AXOR One Thermostatic module for concealed installation for 3 outlets – Polished Gold-Optic

Original price was: £2,175.00.Current price is: £1,740.00.

10-12 Weeks | Approx. Lead Time
FREE Delivery when you spend over £499.00
SKU: 45713990 Categories: , , , ,

• designed to run multiple outlets
• multiple outlets can be run simultaneously
• comfortable turning on / off of outlets with large Select-paddle
• Eco-Function: flow rate regulation via lever handle
• depending on volume flow and installation situation approx. 50% flow rate reduction
• thermostat cartridge, start/ stop cartridge
• Maximum flow rate (at 3 bar): 30 l/min
• Flow rate per user (at 3 bar): 24 l/min
• Flow rate by simultaneous use of all outlets (at 3 bar): 30 l/min
• Min. operating pressure: 1 bar
• Max. operating pressure: 5 bar
• safety stop at 40°C
• Maximum temperature can be adjusted on installation
• the thermostat offers the possibility for thermal disinfection
• Non-return valve
• Connection type: basic set
• Thermostat is delivered with buttons handshower, Rain large and Body spray
• if running with a pump, please specify a universal (negative head) pump
• with flow control - can be reduced with central lever
• winner of the iF product design award 2016
• not compatible with Raindance Rainmaker or AXOR ShowerHeaven heads
• Noise class: II

Additional information

Weight6.15 kg
Brand

AXOR

Range

One

Product Type

3 Outlet Valve

Colour

Polished Gold-Optic

Mount Type

Wall Mounted

Style

Modern

EAN

4011097824253

Description

• designed to run multiple outlets
• multiple outlets can be run simultaneously
• comfortable turning on / off of outlets with large Select-paddle
• Eco-Function: flow rate regulation via lever handle
• depending on volume flow and installation situation approx. 50% flow rate reduction
• thermostat cartridge, start/ stop cartridge
• Maximum flow rate (at 3 bar): 30 l/min
• Flow rate per user (at 3 bar): 24 l/min
• Flow rate by simultaneous use of all outlets (at 3 bar): 30 l/min
• Min. operating pressure: 1 bar
• Max. operating pressure: 5 bar
• safety stop at 40°C
• Maximum temperature can be adjusted on installation
• the thermostat offers the possibility for thermal disinfection
• Non-return valve
• Connection type: basic set
• Thermostat is delivered with buttons handshower, Rain large and Body spray
• if running with a pump, please specify a universal (negative head) pump
• with flow control – can be reduced with central lever
• winner of the iF product design award 2016
• not compatible with Raindance Rainmaker or AXOR ShowerHeaven heads
• Noise class: II
