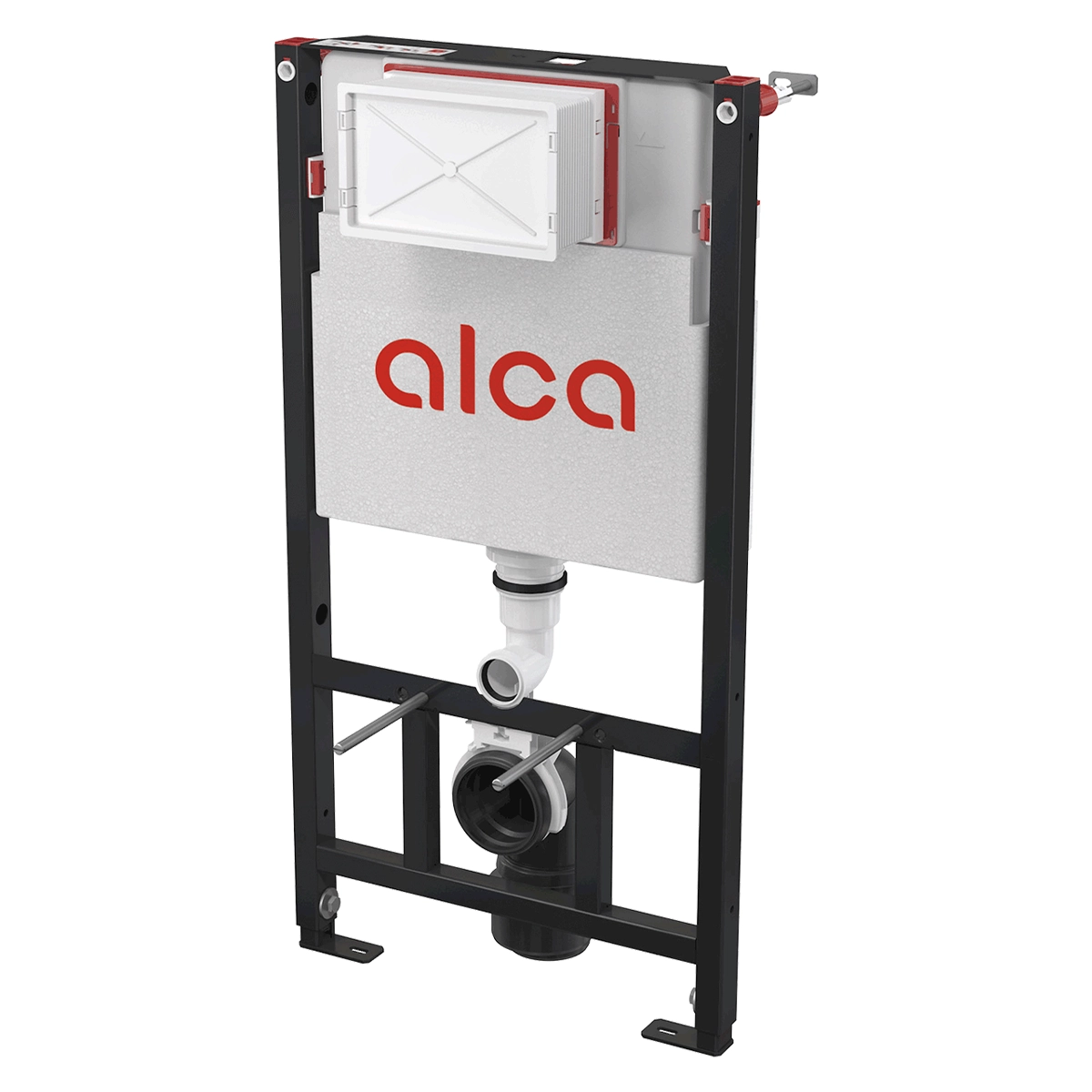

Alca 1.0m frame & cistern (12cm deep) WRAS air gap

Original price was: £294.00.Current price is: £227.85.

5-7 Days | Approx. Lead Time
FREE Delivery when you spend over £499.00
SKU: AM101/1000-0005 Categories: , , , , , , ,

• For wall-hung WC
• For mounting in front of a support wall or in to a plasterboard construction
• For floor thickness 0–200 mm
• For installation of wall-hung WC pans with a connecting pitch of 180 mm or 230 mm

Scope of Suppy;
Cistern with fill and flush valve
Self-supporting frame
Fittings 1/2" water connection with the integrated angle valve Schell 1/2–3/8"
Fixation set: screw Ø8×60 – 4 pcs, dowel Ø12 – 4 pcs
Fixation material for fixing the WC pan: threaded rod M12 – 2 pcs, washers – 4 pcs , cover – 2 pcs, nut – 2 pcs, thread protector – 2 pcs
Elbow waste connector HT 90/90 polyethylene, PE-HD
Waste reduction HT 90/110 polyethylene, PE-HD
Inlet seal, PP outlet, wrapping seal
Drainage seal, PP connector, connector seal
End-caps set for protecting the connecting holes during installation of the system
The 2 piece cover of the service opening is simply adjustable
Set for inserting toilet tablets

Additional information

Weight13.7 kg
Dimensions14.5 × 52 × 113 cm
Brand

Alca

Range

Sádromodul

Product Type

WC Frame

Water connection

G1/2 "

Req. range of water pressure

0.3 – 0.5 Mpa

Big flush

6 – 9 l

Small flush

2.5 – 3.5 l

Water volume in the cistern

9 l

Load test

400 kg

Description

• For wall-hung WC
• For mounting in front of a support wall or in to a plasterboard construction
• For floor thickness 0–200 mm
• For installation of wall-hung WC pans with a connecting pitch of 180 mm or 230 mm

Scope of Suppy;
Cistern with fill and flush valve
Self-supporting frame
Fittings 1/2″ water connection with the integrated angle valve Schell 1/2–3/8″
Fixation set: screw Ø8×60 – 4 pcs, dowel Ø12 – 4 pcs
Fixation material for fixing the WC pan: threaded rod M12 – 2 pcs, washers – 4 pcs , cover – 2 pcs, nut – 2 pcs, thread protector – 2 pcs
Elbow waste connector HT 90/90 polyethylene, PE-HD
Waste reduction HT 90/110 polyethylene, PE-HD
Inlet seal, PP outlet, wrapping seal
Drainage seal, PP connector, connector seal
End-caps set for protecting the connecting holes during installation of the system
The 2 piece cover of the service opening is simply adjustable
Set for inserting toilet tablets

Additional Information
Weight13.7 kg
Dimensions14.5 × 52 × 113 cm
Brand

Alca

Range

Sádromodul

Product Type

WC Frame

Water connection

G1/2 "

Req. range of water pressure

0.3 – 0.5 Mpa

Big flush

6 – 9 l

Small flush

2.5 – 3.5 l

Water volume in the cistern

9 l

Load test

400 kg
