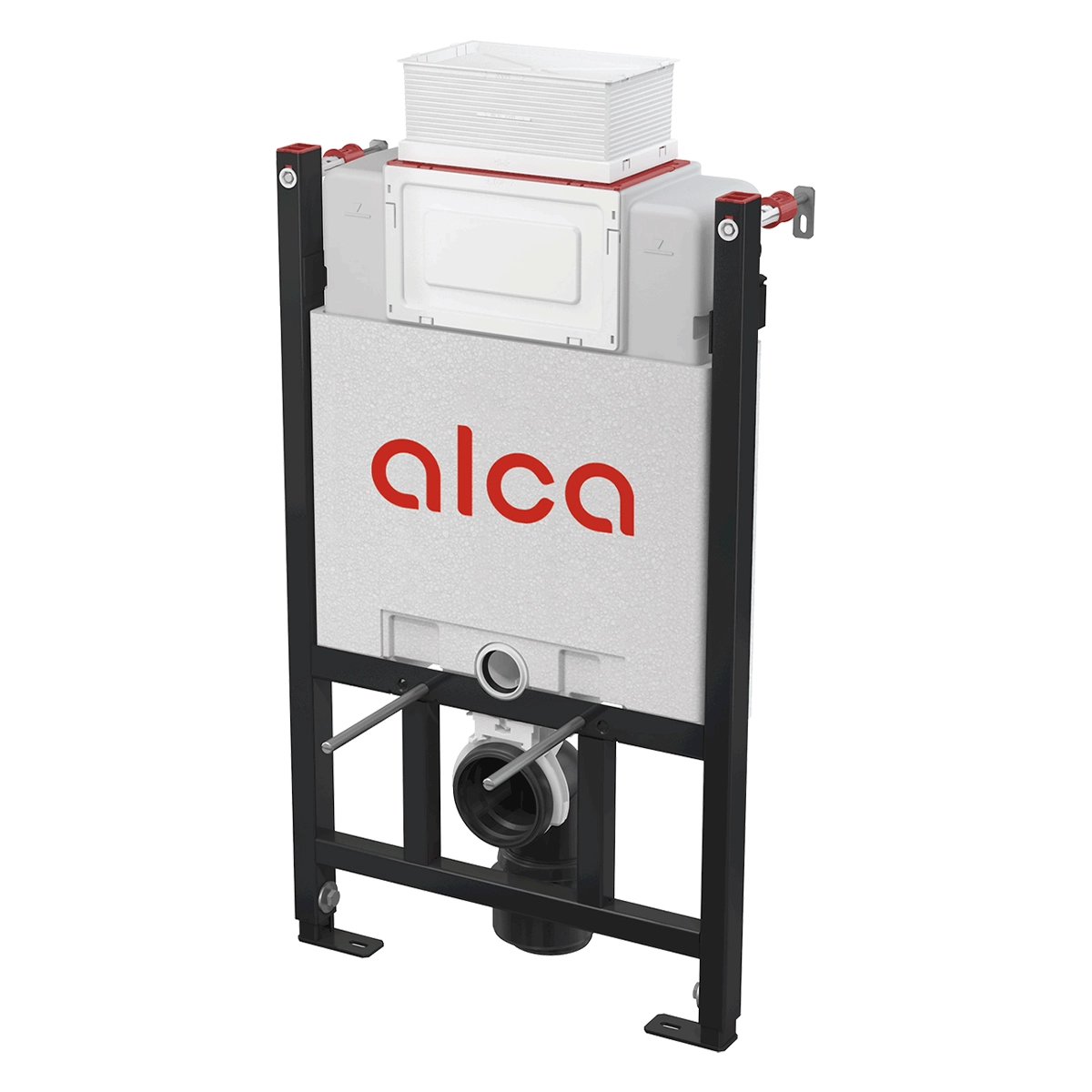

Alca 0.85m frame & cistern (top/front access)

• For wall-hung WC
• For mounting in front of a support wall or in to a plasterboard construction
• For floor thickness 0–200 mm
• For installation of wall-hung WC pans with a connecting pitch of 180 mm or 230 mm

Scope of supply;
Cistern with fill and flush valve
Self-supporting frame
Fittings 1/2" water connection with the integrated angle valve Schell 1/2–3/8"
Fixation set: screw Ø8×60 – 4 pcs, dowel Ø12 – 4 pcs
Fixation material for fixing the WC pan: threaded rod M12 – 2 pcs, washers – 4 pcs , cover – 2 pcs, nut – 2 pcs, thread protector – 2 pcs
Elbow waste connector HT 90/90 polyethylene, PE-HD
Waste reduction HT 90/110 polyethylene, PE-HD
Inlet seal, PP outlet, wrapping seal
Drainage seal, PP connector, connector seal
End-caps set for protecting the connecting holes during installation of the system
The 2 piece cover of the service opening is simply adjustable
Set for inserting toilet tablets
