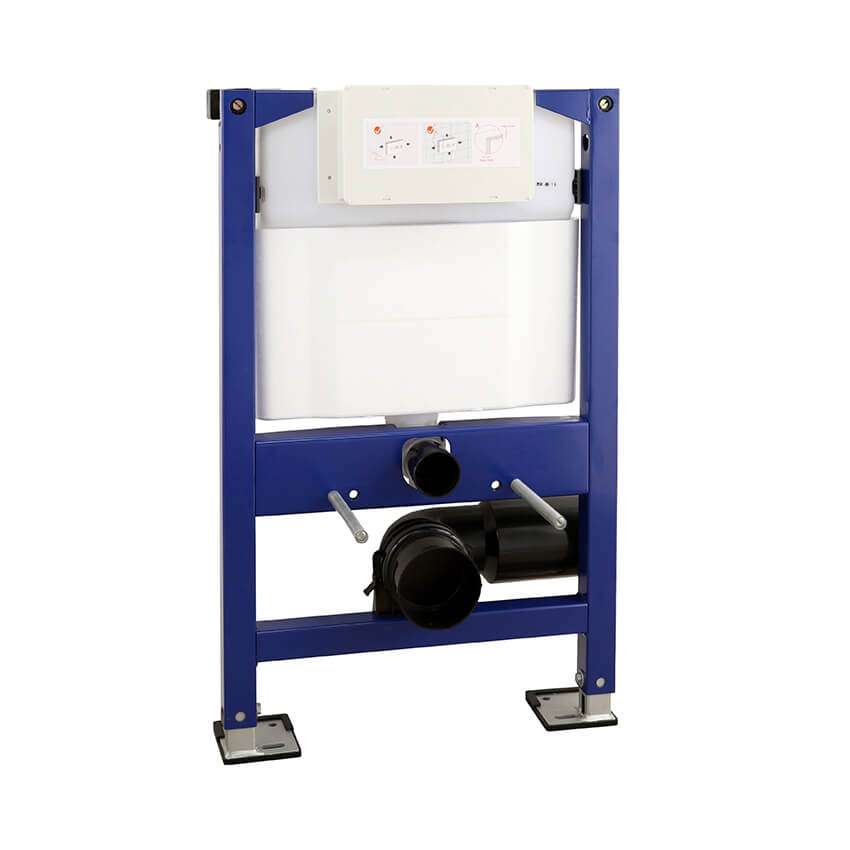

Abacus 820mm WC Frame

With Easi plan any bathroom structure is possible and space can be used much more efficiently. The range offers an ultra flexible range of concealed sanitaryware installation frames that allow the bathroom designer to design with flair and imagination with no need to compromise the installation quality. The hidden frames cover all aspects of sanitaryware and brassware installation including WC's basins and bidets. They create a pre-wall fixing system that eliminates the need for unsightly pipe-boxing and exposed pipes.

820mm WC Frame Features:

• Frames are supplied complete with extension bolt set and quick fix nuts
• Easy install wall brackets for vertical or horizontal fixing
• The wall bracket and top of frame are designed for easy shelf installation
• 0-280mm height adjustable feet with sound deadening pads
• Large feet for easy rear fixing
• Wall Mounted WC Frame
• Top or Front Access
• Includes 90 Degree Waste Bend
• Includes both Straight and Angled Soil Pipe
• Suitable for all our Press Panels
• Supplied with Full Pre-Wall Installation Bolt Kit
• Frames are fully tested to 400kg support weight

Notes:
The siphon can be modified to provide a full flush of either 6L/3L (standard) or 4.5L/3L
WRAS approved product
